Used in rounded
crimping terminal exposed part of minitype wire. |
|
There are six
Kinds of color to be used in twenty three dimensions of wire. |
|
|
|

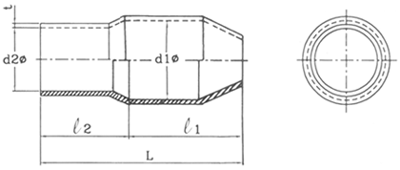

Item No.
|
Applicable
wires |
d1 |
d2 |
1 |
|
L2 |
t0.2 |
Packing
unit |
|
V-1.25
|
1.25 mm2 |
3.3 |
3.1 |
7.0 |
8.0 |
15.0 |
0.6 |
100 pcs |
|
V-2.0
|
2.0 mm2 |
4.5 |
3.7 |
8.0 |
8.0 |
16.0 |
0.7 |
100 pcs |
|
V-3.5
|
3.5 mm2 |
5.7 |
4.1 |
9.0 |
9.0 |
18.0 |
0.8 |
100 pcs |
|
V-5.5
|
5.5 mm2 |
5.7 |
5.2 |
10.0 |
10.0 |
20.0 |
0.8 |
100 pcs |
|
V-8.0
|
8.0 mm2 |
7.2 |
6.2 |
11.0 |
10.0 |
21.0 |
1.0 |
100 pcs |
♦ |
V-10
|
8.0 mm2 |
8.5 |
6.6 |
13.5 |
13.0 |
26.0 |
1.0 |
100 pcs |
|
V-12
|
12 mm2 |
10.0 |
7.3 |
13.0 |
14.0 |
27.0 |
1.1 |
100 pcs |
|
V-14
|
14 mm2 |
10.0 |
8.0 |
15.0 |
13.0 |
28.0 |
1.1 |
100 pcs |
|
V-22
|
22 mm2 |
12.0 |
9.5 |
15.0 |
14.0 |
29.0 |
1.2 |
100 pcs |
|
V-38
|
38 mm2 |
14.0 |
11.8 |
17.0 |
17.0 |
34.0 |
1.4 |
100 pcs |
|
V-60
|
60 mm2 |
17.0 |
13.9 |
22.0 |
20.0 |
42.0 |
1.5 |
100 pcs |
|
V-70
|
70 mm2 |
17.9 |
15.1 |
25.5 |
19.0 |
45.0 |
1.5 |
100 pcs |
|
V-80
|
80 mm2 |
19.0 |
16.0 |
25.0 |
21.0 |
46.0 |
1.5 |
50
pcs |
|
V-100
|
100 mm2 |
22.0 |
18.0 |
31.0 |
24.0 |
55.0 |
1.7 |
50
pcs |
|
V-125
|
125 mm2 |
24.0 |
20.0 |
32.0 |
28.0 |
60.0 |
1.8 |
50
pcs |
|
V-150
|
150 mm2 |
26.0 |
22.0 |
34.0 |
31.0 |
65.0 |
1.8 |
50
pcs |
|
V-185
|
185 mm2 |
29.0 |
24.0 |
33.0 |
33.4 |
66.7 |
1.8 |
50
pcs |
|
V-200
|
200 mm2 |
32.2 |
24.0 |
38.0 |
31.0 |
69.0 |
2.0 |
50
pcs |
|
V-250
|
250 mm2 |
36.5 |
27.2 |
42.0 |
33.0 |
75.0 |
2.0 |
50
pcs |
|
V-325
|
325 mm2 |
36.7 |
30.0 |
42.0 |
33.0 |
75.0 |
2.0 |
25
pcs |
|
V-400
|
400 mm2 |
45.1 |
37.5 |
43.0 |
40.0 |
83.0 |
2.0 |
25
pcs |
|
V-500
|
500 mm2 |
48.2 |
40.2 |
43.0 |
42.0 |
85.0 |
2.0 |
25
pcs |
|
V-630
|
630 mm2 |
53.8 |
45.2 |
48.0 |
45.0 |
93.0 |
2.0 |
25
pcs |
Stander colors: red, white,
blue, black, yellow, green
♦The
specification developed recently , has not applied for UL authentication
yet. |
Products
Quality:
All our products are made from high quality soft P.V.C.
We call them PVC insulating sleeves generally.
According to the rating temperature we differentiate them into
three categories:
1. Common products: rated temperature is under 90
2. Medium products: rated temperature is under 100
3. High level products: rated temperature is 105
E122477 pass 600V, testing |
|
|
