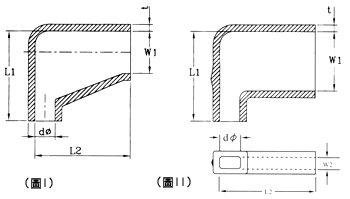

Conventional flag type sleeves

Item No.		d	L11.0	L21.0	W1	W2	t0.2	Remark
	F6230	3.0	12.0	13.0	6.2	3.0	1.0	187 type
*	F8040	4.0	14.0	15.0	8.0	3.5	1.0	205 type
*	F8845	4.5	13.0	15.0	8.8	3.5	1.0	250 type
	F8532	3.2	16.4	17.5	8.4	3.2	1.0	250 type
	F8540	4.0	18.0	18.0	9.5	4.0	1.0	250 type
	F8550	5.0	18.0	18.0	9.2	4.4	1.0	250 type
* Please refer to the picture(II)

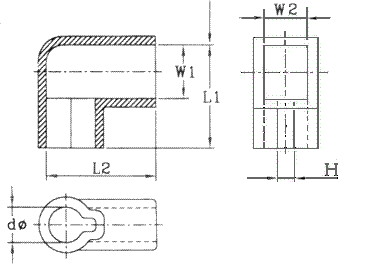

Post Insertion Flag type sleeves

Item No.		d	L11.0	L21.0	W1	W2	t0.2	H
*	F110	2.8	12.0	14.0	4.0	2.8	1.0	1.0
	F187	3.0	12.0	13.0	6.4	3.0	1.0	1.0
	F205	3.3	13.0	14.0	7.0	3.0	1.0	1.0
	F250/16	4.0	13.0	16.0	8.2	4.0	1.0	1.0
	F250/18	4.0	16.0	18.0	9.0	4.0	1.0	1.0
*2000 pcs per bag

Packing unit: 1,000 pcs per bag

Products Quality:
All our products are made from high quality soft P.V.C.
We call them PVC insulating sleeves generally.
According to the rating temperature we differentiate them into three categories:
1. Common products: rated temperature is under 90

2. Medium products: rated temperature is under 100

3. High level products: rated temperature is 105

E122477 pass 600V, testing
