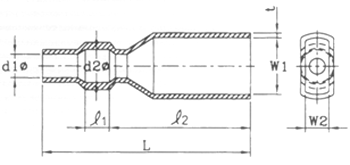

  110 flat type sleeves
　 　
Item No.
 L1.5 W1 W2 t0.2
S4020
 2.0 3.0 2.4 14.6 22.0 4.0 2.1 1.0
S4025
 2.5 3.3 2.4 14.6 22.0 4.0 2.1 1.0
S4028
 2.8 3.7 2.5 14.5 22.0 4.0 2.1 1.0
S4030
 3.0 3.7 2.5 14.5 22.0 4.0 2.1 1.0
S4035
 3.5 4.0 2.5 14.5 22.0 4.0 2.1 1.0
Packing unit: 2,000 pcs per bag

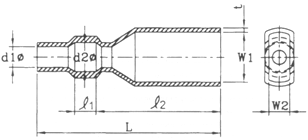

 187 flat type sleeves
　 　
Item No.
 L1.5 W1 W2 t0.2
S5820
 2.0 2.8 2.8 14.0 22.0 5.8 2.6 1.0
S5825
 2.5 3.5 2.8 14.0 22.0 5.8 2.6 1.0
S5830
 3.0 3.8 2.8 14.0 22.0 5.8 2.6 1.0
S5835
 3.4 4.3 2.8 14.0 22.0 5.8 2.6 1.0
S5840
 4.0 4.9 2.8 14.0 22.0 5.8 2.6 1.0
Packing unit: 1,000 pcs per bag

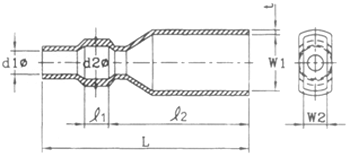

  205 flat type sleeves
　 　
Item No.
 L1.5 W1 W2 t0.2
*
S6520
 2.0 2.8 2.8 14.0 24.0 6.5 3.0 1.0
　
S6525
 2.5 3.5 3.0 14.0 24.0 6.5 3.0 1.0
　
S6530
 3.0 4.1 3.0 14.0 24.0 6.5 3.1 1.0
　
S6535
 3.5 4.4 3.0 14.0 24.0 6.5 3.0 1.0
　
S6540
 4.0 5.0 3.0 14.0 24.0 6.5 3.0 1.0
 * Planning to create
Packing unit: 1,000 pcs per bag

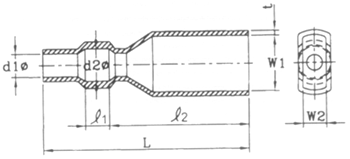

  250 flat type sleeves
　 　
Item No.
 L1.5 W1 W2 t0.2
　
S8025
 2.5 3.7 3.0 17.0 26.0 7.8 3.6 1.0
　
S8028
 2.8 4.0 3.0 17.0 26.0 7.8 3.6 1.0
　
S8030
 3.0 4.1 3.2 17.0 26.0 7.8 3.6 1.0
　
S8035
 3.5 4.5 3.2 17.0 27.0 7.8 3.5 1.0
　
S8038
 3.8 5.0 3.0 17.0 26.0 7.9 3.5 1.0
　
S8040
 4.1 5.1 3.2 17.0 27.0 8.0 3.6 1.0
　
S8045
 4.5 5.6 3.0 17.0 27.0 8.0 3.6 1.0
　
S8050
 5.0 6.1 3.2 17.0 27.0 7.8 3.6 1.0
*
S9038
 3.8 4.8 3.3 23.5 35.3 9.0 3.7 1.0
 * Special Size
Packing unit: 1,000 pcs per bag



  250 flat type sleeves(male)
　 　
Item No.
 L1.5 W1 W2 t0.2
S9528
 2.8 3.8 3.0 16.3 27.5 9.5 5.0 1.0
S9535
 3.5 4.6 3.0 16.0 26.0 9.5 5.0 1.0
S9540
 4.0 5.0 3.0 16.0 26.0 9.5 5.0 1.0
Packing unit: 1,000 pcs per bag

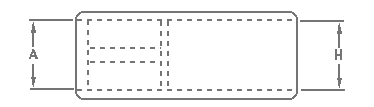

  Post Insertion type sleeves (Type1)
　 　
Item No.
 A B C D1.5 E F G H l0.1 t0.2
*
A110
 4.0 6.3 6.0 21.0 1.1 2.0 2.0 4.0 1.4 1.0
　
A187
 5.8 6.8 6.5 23.0 1.35 2.8 2.8 5.8 1.8 1.0
　
A205
 6.3 7.4 7.2 22.0 1.3 2.6 2.6 6.3 1.5 1.0
　
A250
 7.6 9.5 8.7 26.0 1.2 3.2 3.2 7.6 2.0 1.0
 * 2000 pcs per bag
Packing unit: 1,000 pcs per bag

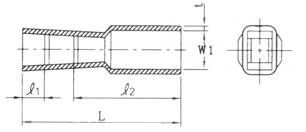

  Post Insertion type sleeves (Type2)
　 　
Item No.
 L1.5 W1 W2 t0.2
S187
 2.6 4.0 5.0 6.5 14.0 24.0 5.2 2.5 1.0
S250
 3.0 4.2 6.9 6.5 15.0 26.0 6.5 3.0 1.0
Packing unit: 1,000 pcs per bag




Products Quality:
All our products are made from high quality soft P.V.C.
We call them PVC insulating sleeves generally.
According to the rating temperature we differentiate them into three categories:
1. Common products: rated temperature is under 90
2. Medium products: rated temperature is under 100
3. High level products: rated temperature is 105
 E122477 pass 600V, testing
