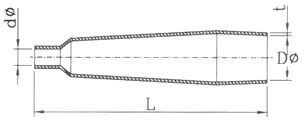

Item No.
 d D L2 t0.2 Packing unit
　
01A
 3.1 5.6 34.0 0.8 500 pcs
♦
01B
 2.5 5.5 30.0 1.0 500 pcs
♦
01C
 2.7 5.5 32.0 1.0 500 pcs
　
02A
 3.3 6.1 40.0 0.8 500 pcs
♦
02B
 3.7 6.5 42.0 1.1 500 pcs
　
03A
 3.6 8.1 54.0 1.0 500 pcs
　
03A (H)
 3.6 8.3 50.0 1.0 500 pcs
♦
03E
 4.2 8.2 54.0 1.0 500 pcs
　
04A
 5.5 7.5 38.0 1.1 500 pcs

Standar colors:red,black,yellow,green,blue,white.

♦The specification developed recently , has not applied for UL authentication yet.






　
05A
 3.5 11.0 55.0 1.2 500 pcs
♦
05B
 3.8 11.8 53.0 1.1 500 pcs
　
10A
 4.0 14.3 64.0 1.2 200 pcs


 20A
 5.5 14.0 68.0 1.2 200 pcs


　
20B
 5.1 15.0 75.0 1.2 200 pcs
　
20B(N)
 6.9 15.0 75.0 1.2 200 pcs
♦
20C
 5.1 15.0 88.0 1.2 200 pcs
　
25A
 6.5 25.5 88.0 2.0 100 pcs

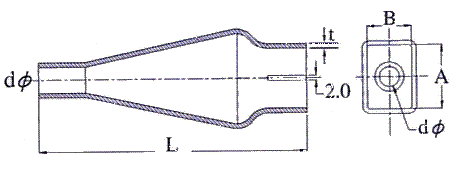

Item No.
 d A B L2 t0.2 Packing unit
　
20A-SQ
 5.1 14.0 12.0 77.0 1.2 200 pcs
♦

25A-SQ

4.5 12.5 15.8 82.5 1.4 200 pcs
　
50A-SQ
 8.5 27.0 19.0 120.0 1.8 100 pcs

♦The specification developed recently , has not applied for UL authentication yet.

　


Products Quality:
All our products are made from high quality soft P.V.C.
We call them PVC insulating sleeves generally.
According to the rating temperature we differentiate them into three categories:
1. Common products: rated temperature is under 90
2. Medium products: rated temperature is under 100
3. High level products: rated temperature is 105
 E122477 pass 600V, testing
